Superior performance.

This nozzle offers unbeatable versatility and ease of use.

Designed to perform at a working pressure of up to 100 PSI, ensuring reliable and consistent output.   This nozzle can be used as a break-apart, offering  versatility in the field.

Specs

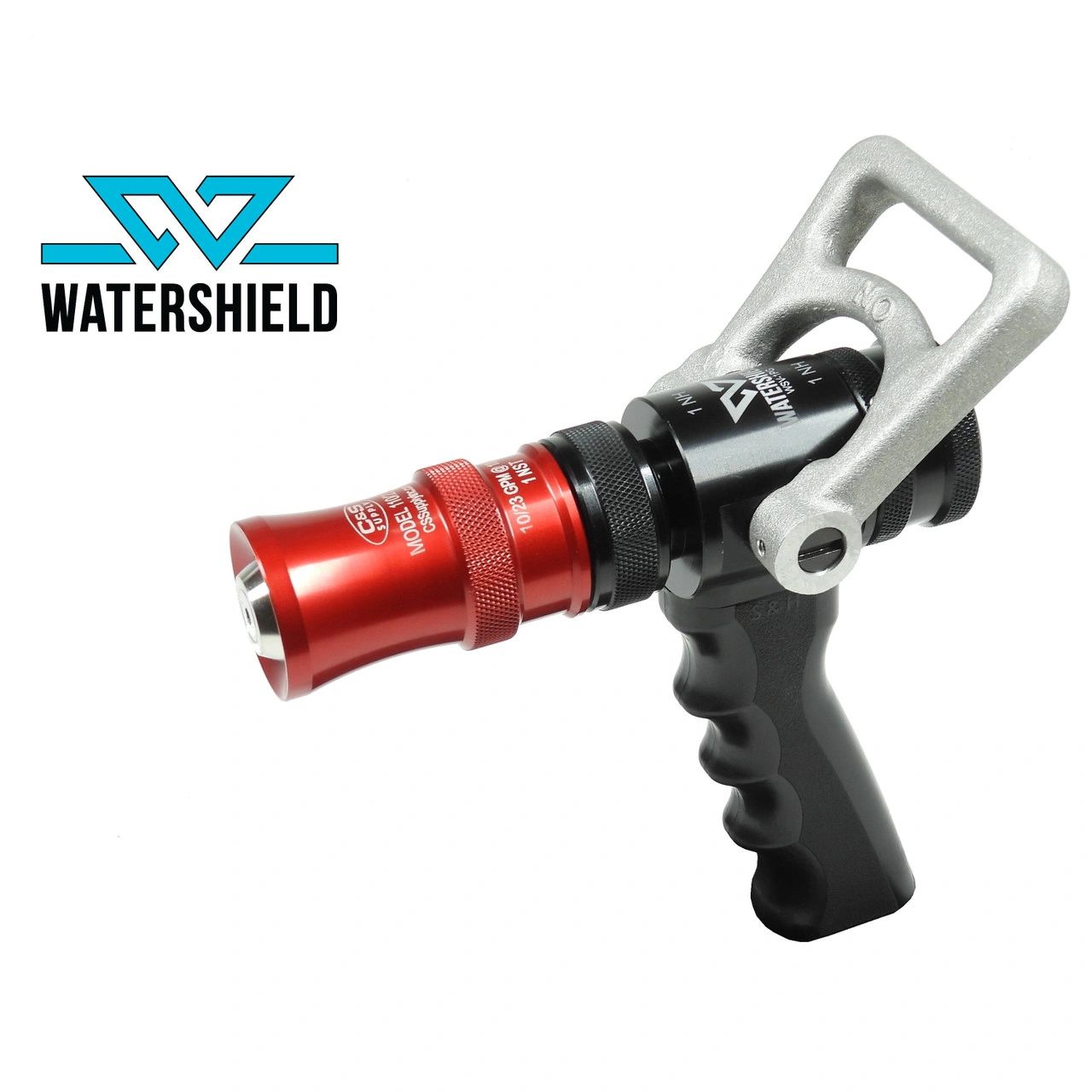

10/23GPM 1" Dual Flow Nozzle

Model - SB-WS-10

Brand - Watershield

Swivel inlet - 1” NH Full Time Swivel

Flow (GPM) - 10-23 GPM 1" Dual Range Nozzle @ 100 PSI

Material - 6061 T6 Anodized Aluminum w/ internal Stainless Steel

Markings - Laser etched inlet size, thread & model #

  • 10/23 GPM (with or without bumper) Dual Range nozzle
  • Full-time swivel
  • Pistol grip and metal bail handle
  • 1" NST or NPSH available
  • Working pressure is 100psi
  • Can be used as a Break Apart
  • Constructed of hard anodized aluminum with stainless internal parts
  • Fog pattern, Straight Stream and a Twist Shutoff with the turn of the protective rubber bumper
  • Ergonomically designed for easy operation and handling
  • Safe and durable (individually tested)

Video

The break-apart design allows the nozzle to be separated from the shutoff—ideal for extended hose lays and versatile deployment scenarios. Built from hard-anodized aluminum with stainless steel internals, it’s made to withstand the toughest environments while remaining lightweight and easy to operate.

Model SB-WS-10 Gallery
