Protects property. Saves lives.

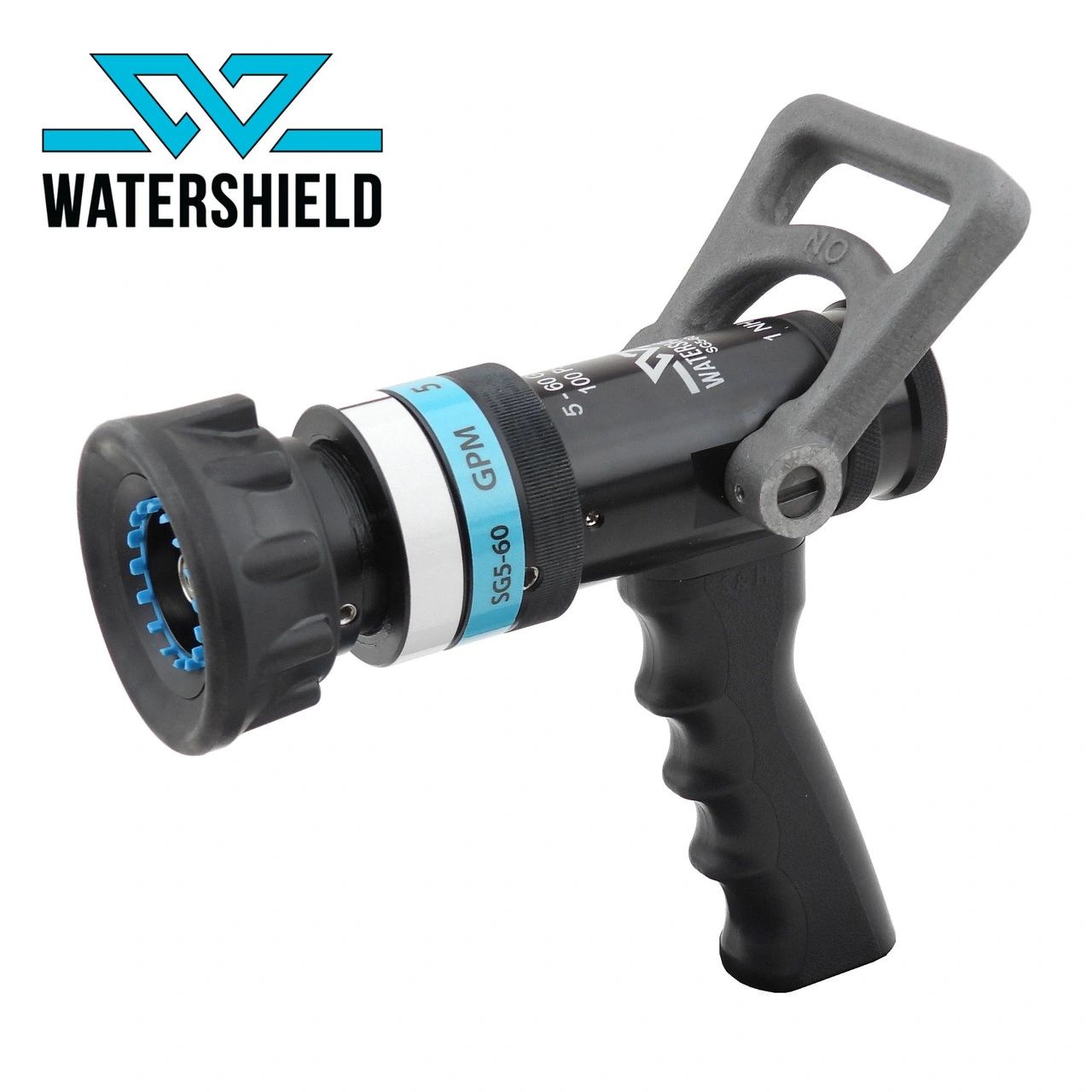

Providing precision water delivery, the SG5-60 has (5) different settings. 5, 15,30, 45, and 60 GPM. With just a quarter turn of the bumper, the water pattern can be changed from a straight stream to a 110-degree wide fog pattern.

Specs

Structural Nozzle

Model - SG5-60

Brand - Watershield

Swivel inlet - 1” NH Full Time Swivel

Flow (GPM) - 5-60 GPM @ 100 PSI

Material - 6061 T6 Anodized Aluminum w/ internal Stainless Steel

Weight - 3.75 lbs

Height - 8 ½”

Length - 9 ½”

Width - 3 ½”

Markings - Laser etched inlet size, thread & model #

SG5-60 Gallery

Downloads

2026 Watershield Catalog_small (pdf)Download
