Shut Off Valves
Pistol grip

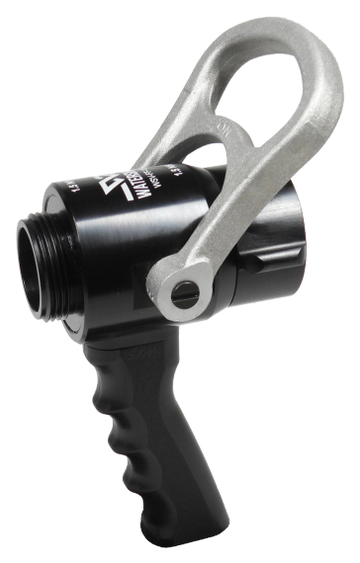

WSV-1-PG
1" with 3/4" waterway. 1" ball shut-off, pistol grip, and full-time swivel. Thread options NH/NPSH. Max Operating Pressure 600PSI. Hard Anodized Aluminum. 2.5 lbs. Height 9"x Depth 5" x Width 7". Laser etched inlet, size, thread type, and model number. Warranty, 5 year parts and workmanship.
WSV-15PG
1.5" with 1" waterway. 1.5" ball shut-off, pistol grip, and full-time swivel. Thread options NH/NPSH. Max Operating Pressure 600PSI. Hard Anodized Aluminum. 2.5 lbs. Height 8.75" x Depth 5.5" x Width 3.88". Laser etched inlet, size, thread type, and model number. Warranty, 5 year parts and workmanship.
WSV-FF-15PG
1.5" with 1 3/8" waterway. 1.5" ball shut-off, pistol grip, and full-time swivel. Thread options NH/NPSH. Max Operating Pressure 400PSI. Hard Anodized Aluminum. 3.5 lbs. Height 9.5"x Depth 5.5" x Width 5". Laser etched inlet, size, thread type, and model number. Warranty, 5 year parts and workmanship.

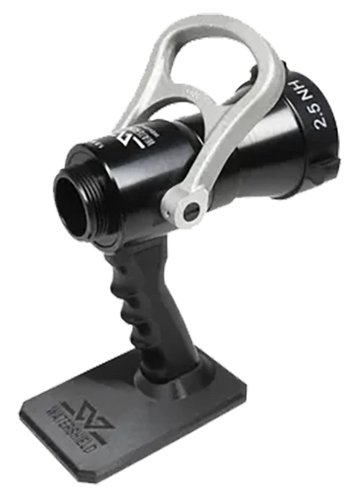

WSV-FF-25PG
2.5" with 1 3/8" waterway. 2.5" ball shut-off, pistol grip, and full-time swivel. Thread options NH. Max Operating Pressure 400PSI. Hard Anodized Aluminum. 4.5 lbs. Height 9.5"x Depth 9" x Width 5". Laser etched inlet, size, thread type, and model number. Warranty, 5 year parts and workmanship.
Valve only

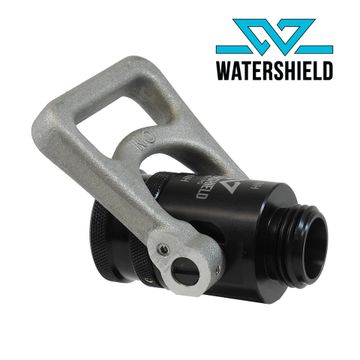

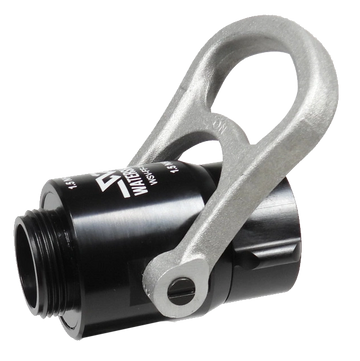

WSV-1NH
1" with 3/4" waterway. 1" ball shut-off and full-time swivel. Thread options NH/NPSH. Max Operating Pressure 600PSI. Hard Anodized Aluminum. 2.5 lbs. Height 9"x Depth 5" x Width 7". Laser etched inlet, size, thread type, and model number. Warranty, 5 year parts and workmanship.
WSV-15NH
1.5" with 1" waterway. 1.5" ball shut-off and full-time swivel. Thread options NH/NPSH. Max Operating Pressure 600PSI. Hard Anodized Aluminum. 2.5 lbs. Height 8.75"x Depth 5.5" x Width 3.88". Laser etched inlet, size, thread type, and model number. Warranty, 5 year parts and workmanship.
WSV-FF-15NH
1.5" with 1 3/8" waterway. 1.5" ball shut-off and full-time swivel. Thread options NH/NPSH. Max Operating Pressure 400PSI. Hard Anodized Aluminum. 3.5 lbs. Height 9.5"x Depth 5.5" x Width 5". Laser etched inlet, size, thread type, and model number. Warranty, 5 year parts and workmanship.

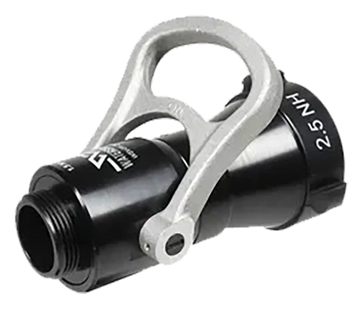

WSV-FF-25NH
2.5" with 1 3/8" waterway. 2.5" ball shut-off and full-time swivel. Thread options NH. Max Operating Pressure 400PSI. Hard Anodized Aluminum. 4.5 lbs. Height 9.5"x Depth 9" x Width 5". Laser etched inlet, size, thread type, and model number. Warranty, 5 year parts and workmanship.
